Short Path Distillation

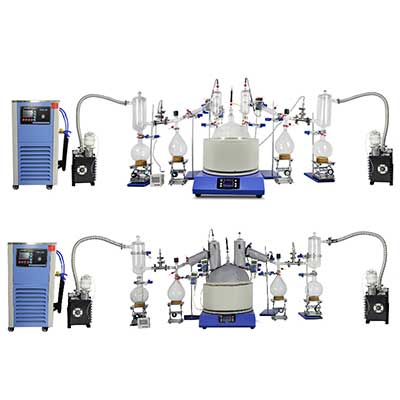

20L Short path distillation

Message

Distillation equipment -20L short-path vacuum distillation equipment, the vacuum pump can be used to make the vacuum of the short-path distillation kit reach 0.098Mp, which can raise the temperature inside the short-path distillation system again and can distill and decompose more difficult materials.

Features

- The product is made of high-quality borosilicate glass.
- The evaporation cylinder is integrally machined without an intermediate flange connection.
- The surface of the cylinder has a high surface finish and is not easy to stick.
- All metal parts are made of 304 stainless steel and have good chemical resistance.
- Short-path distillation is a physical separation process that keeps the material in a natural state free from contamination.
- The short-path distillation kit has a very short heating time and can be completed in tens of seconds. It is low-carbon and environmentally friendly and helps to maintain material activity.
- High quality and heavy-duty Borosilicate 3.3 glass for durability.
- Vacuum-jacketed distillation adapter, with 4 Vigreux stages.
- 10L heating mantle with magnetic stirring function, available in 110V/220V.
- Detachable plastic 3/8”(10mm) hose barbs for maximized safety during operation.
- Carefully designed 3-way cow adapter accommodates up to 3 pcs of 500mL flasks.
- TGCT-01 cold trap protects the vacuum pump from contamination and damage of vapors.
- Flexible choice of vacuum pumps and heater/chillers.

Detail

Short-path distillation receiving bottle

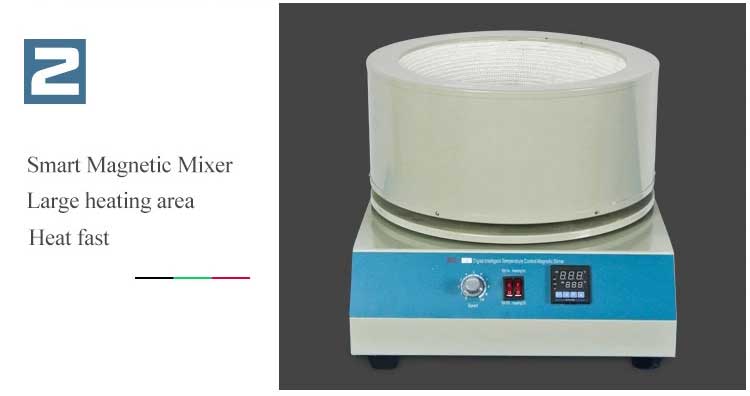

Electric heating mantle - short-distance distillation system heating equipment

For the perfect use of the entire short path distillation system, you may need the following equipment

- Circulating water type multi-function vacuum pump

- Diaphragm vacuum pump

- Rotary vane vacuum pump

- Low temperature coolant circulation pump

- Low temperature constant temperature reaction bath

After sale

- 1 year warranty service and all life maintenance.

- Technical Egineer are avalible for oversea trainning.

- Free change for some parts

- Remote control technical consult

- Free installation DVD

- Maintenance plan

Package

Transport

Model	Parts name	Parts number
20L short path distillation	20000 ml Digital Heating Mantle	1
	20000 ml 2 Neck Boiling Flask	1
	Short Path Distillation Head	1
	Cow Receiver	1
	3000 ml Round Bottom Flasks	3
	Plastic Keck Clips	7
	Cast Iron Stand	1

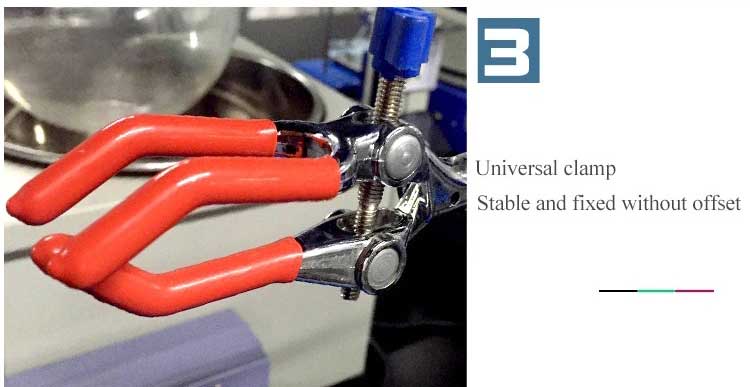

	Metal Three Finger Clamp	1

1. 20l short-path distillation production process.

The cylinders of the short-path distillation kit are integrally machined, and the evaporation cylinder has no intermediate flange connection. The integrally processed cylinder not only avoids the leakage and material accumulation caused by the flange connection but also avoids the occurrence of low-temperature zones on both sides of the flange, resulting in the effective use of the evaporation surface. In addition, the overall processing of the cylinder can effectively ensure the accuracy of the equipment.

2. Is the short-path distillation equipment easy to stick during use?

The inner surface of the cylinder is used as the heating evaporation surface of the short-path distillation unit. The surface finish is strictly required. After the rough processing reaches the assembly size requirement, the inner surface of the cylinder of the SPD series short-path distillation set is refined to achieve Ra0.8μm, can ensure that the inner surface is not easy to stick and scale, reduce material retention, Improve heat transfer efficiency.

3.How do you package the glass reactor equipment for shipment?

We package our products in special cartons and you can order fumigation boxes if you have special requirements.
