Rotary Evaporator

50L Rotary Evaporator

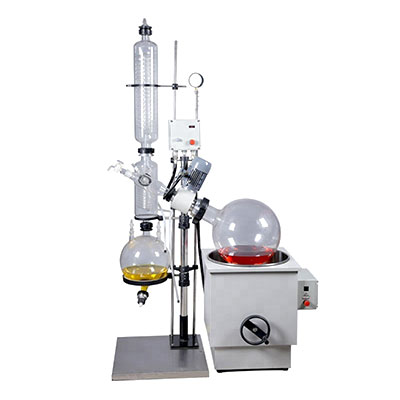

The 50l rotary evaporator (RE-5002) has a 50L rotating bottle with a speed of 0~90r/min. It is a new type of laboratory rotary evaporator.


  Features


- Adopting international advanced EL gas-tight system can keep high vacuum degree. Gas-liquid separator, no reflux.
- Host and vice highly effective double condenser, easy to install, good sealing, collection rate over 95%.
- The rotating flask is connected by screw nut, easy to install and setup.
- There is a discharge valve, fast to collect solvent.
- Continuous feed are available. (Inlet Valve)
- The vacuum system is installed vacuum meter, and can adjust best vacuum degree for low boiling point material.
- Water bath intelligent temperature controller, and can be lifted up and down. Electric lifting can be customized according factual demands.
- Reasonable structure, exquisite material. Mechanical parts are made of stainless steel and aluminum die casting. Glass parts are made of corrosion resistance, high temperature resistance, borosilicate glass. Rubber parts adopt new standard materials, easy to change for users.

  Detail


double spiral condenser

GG-17 Shut-off valve

Temperature controller

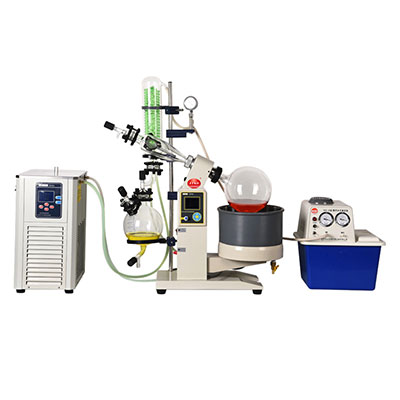

  For the perfect use of the entire rotary evaporator system you may need the following equipment


- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump

  After sale


- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan


  Package


package

  Transport


Delivery method

Model RE-5002
Evaporating Flask(L) 50L
Receiving Flask(L) 20L
Rotating Motor(W) 180W
Rotating Speed(R/MIN) 0~90
Water(Oil) Bath Power(W) 7000W
Temperature Control Range RT-399℃
Temperature Fluctuation(℃) ±1℃
Evaporation Rate(H2O) >9L/h
Condenser Vertical Double Condenser
Lifting Mode Water(Oil) Bath Manual Lifting
Lifting Height(mm) 0~220
Voltage 380V50HZ
Sealing Mode PTFE,Fluoro Rubber Sealing
Note Customized configuration is available

1. What is the maximum temperature?

Temperature range: RT - 399 ° C oil bath.
Temperature range: RT - 99 ° C water bath.


2. How to package glass equipment?

We package these glass equipment in a good non-fumigation standard plywood box, which can reduce the shock and better protect the glass part of the equipment.


3. What kind of glass is used in the RE-5002 rotary evaporator?

It is made of borosilicate glass, which has good heat resistance and shock resistance. It is durable and durable. It is easy to clean. The heat resistant temperature can reach 400 °C, and the temperature tolerance range is 120 °C.


4. What are the requirements for the selection of cryogenic cooling equipment for the RE-5002 rotary evaporator?

For the low-temperature cooling equipment of the rotary evaporator, it is recommended to choose the DLSB series of low-temperature coolant circulation pump produced by our company. The cooling capacity of this series of cooling equipment is 5L to 100L, and the lowest temperature is -15 °C to -120 °C. You can choose according to your specific needs.
