Rotary Evaporator

Rotary Evaporator System

Lab 50L chemical evaporator R-1050 rotary evaporator has good heat resistance and shock resistance. And explosion-proof optional.


  Features


- Advanced EL gas-tight system keeps high vacuum degree.Gas-liquid separator, no reflux.
- Main and auxiliary condenser, high recovery.
- The rotating flask is easy to install and setup.
- Continuous feed are available. (Inlet Valve)
- Water(oil) bath,electric lifting, intelligent PID temp. controller.
- Reasonable structure, exquisite material, with brake casters for easy movement.
- Mechanical parts are made of stainless steel and aluminum die casting.
- Adopt corrosion and high temperature resistance borosilicate glass.
- Rubber parts adopt new standard materials, easy to change for users.
- Built-in transmission system, frequency conversion speed regulation, stable speed.
- Explosion-proof system is optional.
- 110 V/60HZ can be customized.


  Detail


brushless DC motor

pan lifting integrated

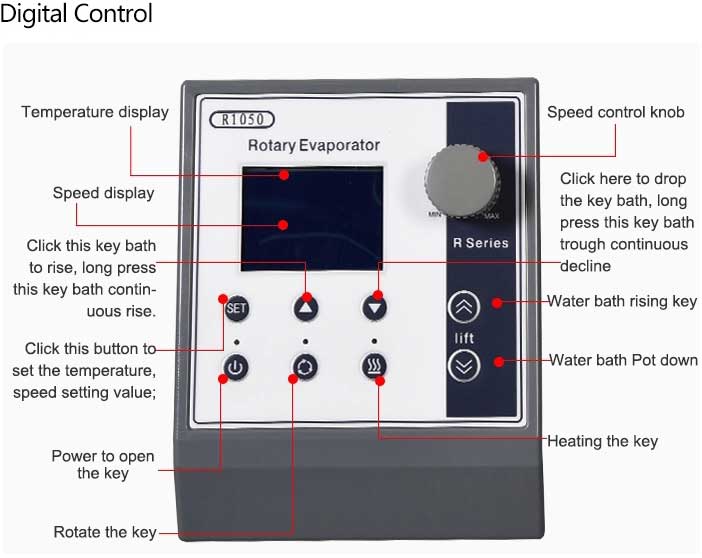

digital control

rotary bottle

three-layer main and auxiliary coil

  For the perfect use of the entire rotary evaporator system you may need the following equipment


- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator
- Low temperature circulation pump

  After sale


- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan


  Package


package


  Transport


Delivery method

Model R1050
Optimum ambient temperature(℃) 5-35
Working power supply(V/Hz) Three phase 220-240V/380V/60Hz
Main engine speed(RPM) 20-110
Main engine speed control Digital direct current stepless speed regulation
Rotary electric machine(W) Brushless 250
Temperature control(℃) Digital display temperature control,room temperature -99℃
Maximum vacuum(Pa) 399.9(Below 3mmHg)
Rotating bottle(L) 50
Recoverty bottle(L) 20
Condenser tube The vertical main cold+cold side,high efficiency reflux condenser.
Evaporation capacity(L/h) The water is more than 9 Alcohol is more than 19
Water bath pot material Stainless steel
Water bath pot size(mm) Φ550*320
Lifting function Electric + hand lift
Lift stroke(mm) 0-180
Whole power(Kw) 4.0(220-240V)
Outline dimension(mm) 1320*770*2340


1. What kind of glass is used in the R-1050 rotary evaporator?

It is made of borosilicate glass, which has good heat resistance and shock resistance. It is durable and durable. It is easy to clean. The heat resistant temperature can reach 400 ° C, and the range of withstand temperature drastic changes is 120 ° C.


2. Is it convenient to move the rotary evaporator?

It is very convenient to move, and the universal caster can be arbitrarily turned 360°, which is convenient to move. One button fixed, the body is more stable during work.


3. Can I adjust the height of the rotating bottle?

The height of the rotating bottle cannot be adjusted, but the heating surface of the bottle can be felt by adjusting the height of the water/oil pan (electrical lifting).


4. How long can the rotary evaporator work continuously?

The rotary evaporator can work all the time, but it needs to be shut down for maintenance and maintenance after running for a period of time, which can increase the service life of the equipment.
