Rotary evaporator, also known as rotary evaporator used for sale or rotary evaporator, is an experimental instrument commonly used in chemical laboratories, mainly used for continuous distillation of a large number of volatile solvents under negative pressure conditions. In particular, the concentration of the extract and the distillation of the receiving liquid during chromatographic separation can separate and purify the reaction product. As the evaporator is evacuated, the boiling point of the solvent to be distilled is lowered. Usually, the components distilled from the sample are the target components in chemical research, such as extracting a natural component from organic synthetic samples. rotary evaporators under vacuum are mostly used to separate low-boiling components such as hexane and ethyl acetate, which are liquid at room temperature and pressure. In addition, through standardized operations, it is also possible to remove certain components contained in the sample.

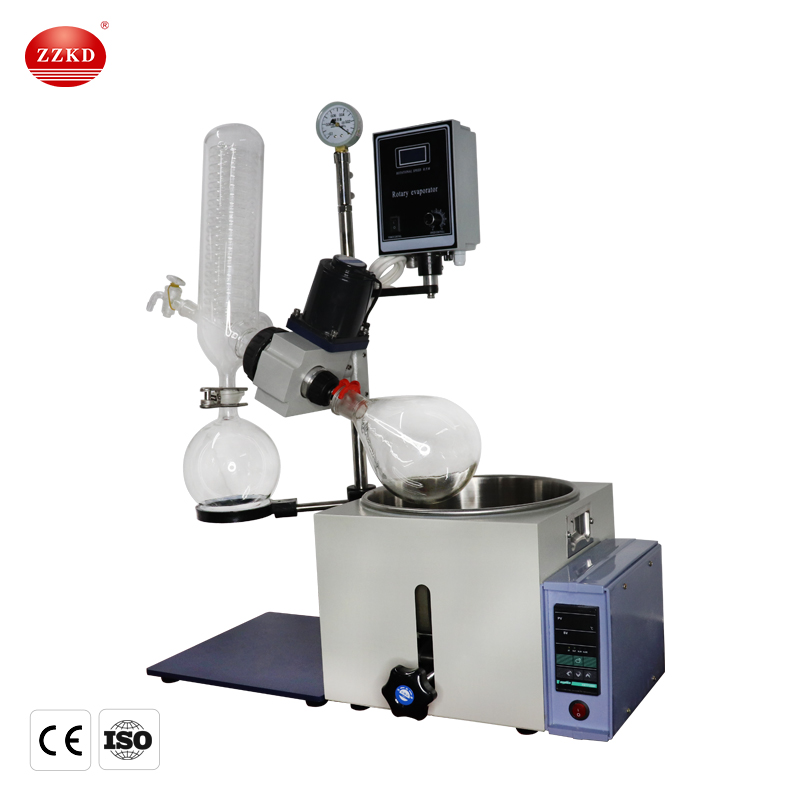

The maximum capacity of the RE-2002 rotary evaporator is 2000ml, the speed is 5-120r.p.m, and the motor power is 25W. RE-2002 rotary evaporator realizes the ascending or descending of the main unit manually, the vertical high-efficiency condenser, and the interlayer has an ice container, which can quickly achieve the condensation effect. The rotary evaporator used for sale can rotate under constant temperature heating and negative pressure to form a thin film, evaporate efficiently, and then recover the solvent after cooling. It is especially suitable for crystallization, separation, and solvent recovery of heat-sensitive materials.


RE-2002 rotary evaporator has the following features:

1. It is composed of a group of stable and reliable micro motors, tachometer motors and integrated circuits, which can realize step-less speed regulation of 0-120 rpm under the action of electronic speed regulation;

2. Vertical high-efficiency condenser, with ice container in the interlayer and additional material pipe;

3. Loosen the cross screw, the host can be tilted arbitrarily within the range of 0-15°;

4. The condensing system is connected to the machine head, which can be tilted and fed continuously. The vertical high-efficiency serpentine condenser makes the condensation speed of the solvent fast, and the recovery rate is close to 100%;

5. Digital display speed and heating pot temperature, all parameters are clear at a glance;

6. With anti-dry burning protection function and safe temperature loop;

7. Micro-motor variable speed, wide speed regulation range, the speed can be freely set between 0-120rpm;

8. Smooth start, forward and reverse operation;

9. Sturdy and durable design, you can choose anti-explosion-coated glass components according to your needs;

10. The closed resistance wire heating tube is used, connected to the temperature digital display, which can automatically turn on or off the power supply to automatically control the water temperature in the tank;

11. Double sealing of PTFE and fluoro rubber sealing ring to maintain high vacuum;

12. The sink is made of high-quality stainless steel, which can prolong the service life.


Product application scenarios：

Rotary evaporators under vacuum are mainly used for concentration, crystallization, drying, separation and solvent recovery in the pharmaceutical, chemical and biopharmaceutical industries. The principle is that under vacuum conditions, constant temperature heating makes the rotating bottle rotate at a constant speed, and the material forms a large-area film on the bottle wall, which evaporates efficiently. The solvent vapor is cooled by a high-efficiency glass condenser and recovered in the collection bottle, which greatly improves the evaporation efficiency. It is especially suitable for the concentration and purification of biological products that are easily decomposed and denatured at high temperatures.


RE-52 has a small capacity and the motor can be raised and lowered by electric and manual. It is an essential basic instrument for analytical experiments in pharmaceutical companies, the chemical industry, scientific research units, colleges and universities and other fields. The specific applications are as follows:


1. Pharmaceutical industry: quality control and various applications in R&D department laboratories: distillationconcentrationdrying

2. Chemical industry: daily application in quality control and R&D laboratories: concentration eflux reaction ecrystallizationsublimation

3. Academic/educational field: wide application in academic education: comprehensive evaporation application

4. Food/beverage industry: used for quality control in food and beverage industry and research and development of new ingredients and ingredients: distillationconcentrationdrying

5. Environmental analysis: used to prepare samples for environmental pollution monitoring: Soxhlet extraction/concentration

6. Feed: used for quality control in the feed industry and research and development of new ingredients and ingredients: distillationconcentrationdrying


Advantage：

1. Electronic step-less speed regulation, stable operation, silent design, optimized experimental environment.

2. The motor can be automatically raised and lowered by electric and manual operation, which is convenient to operate;

3. The host can be tilted arbitrarily within the range of 0-15°, which can better cooperate with the water bath, and the rotating bottle can adapt to a wider range;

4. The condensing system can be tilted with random head, continuous feeding, double reflux vertical high-efficiency serpentine condenser makes the solvent condensation speed fast, and the recovery rate is close to 100%;

5. Digital display speed and heating pot temperature, all parameters are clear at a glance;

6. Sturdy and durable design, you can choose explosion-proof glass components according to your needs;

7. The sink is made of high-quality stainless steel, which can prolong the service life.

8. The rotary-steamed ball-mill mouth collection bottle is sleeved and connected to the integrated standard mouth condensing pipe, which can be easily disassembled and assembled, and has excellent sealing performance.

9. There is a PTFE jacket between the glass of the standard port of the rotary evaporator, which reduces the "biting" of the glass grinding port, and is convenient for assembly, disassembly and cleaning.

10. 0-120 rpm wide speed regulation, digital display of speed, intuitive and convenient

11. The rotary evaporator under vacuum has an ISO29 standard mouth, which can be easily withdrawn with threads to reduce glass damage and solve the problem of difficult bottle withdrawal under high temperature.

12. The temperature fluctuation of the rotary evaporator used for sale is only ±0.1℃, the evaporation is more stable, it is not easy to flush the material, there is no spark control, and it is safe.
