Low Temperature Coolant Circulation Pump

DLSB50-30 Cooling Chiller

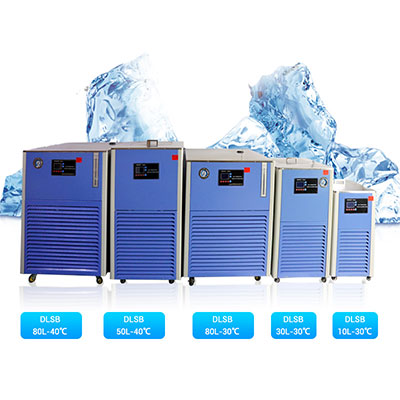

The DLSB series of low-temperature coolant circulation pumps are a type of equipment mainly used by ZZKD laboratory equipment manufacturers for condensation and refrigeration. This cooling chiller has the characteristics of fast cooling speed, corrosion resistance, and simple operation.


- With the microcomputer software lock function, it can lock the system parameter settings.
- All operations are performed by pressing the touch soft key on the microcomputer intelligent controller, which is easy to operate.
- The circulatory system is made of anti-corrosion material and has functions such as anti-rust, anti-corrosion, and low-temperature liquid pollution sterilization.
- Under the conditions of water shortage, poor water quality, high water pressure and high temperature, it can effectively guarantee the normal use of various precision instruments;
- The unit combines circulation and cooling to save more space.


Low temperature coolant circulation pump

chiller compressor

cooling chiller oil separator

DLSB chiller plate heat exchanger

lab cooling chiller drier filter

Laboratory cooling pump expansion valve

  As a condensing device, the DLSB series chiller is suitable for the following laboratory equipment:


  After sale

- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan





Model DLSB-50/30
Volume(L) 59.31
No Load Min. Temp. (℃) -30
Environment Humidity(%) ≤70
Power Supply(Single phase)(V/HZ) 380/50
Temp. Precision(℃) ±2
Cooling Capacity(W) 20℃ -
10℃ 5475
0℃ 4380
-10℃ 3285
-20℃ 1190
-30℃ 1095
-40℃ -
-60℃ -
-80℃ -
-100℃ -
-120℃ -
Total Power(W) 3850
Total Current(A) 5.4
Refrigerant R404A
Circulating Pump Power(W) 100
Flow(L/min) 25
Lift(m) 7
Open Size(mm) 360×360
Liquid tank(mm) 390×390×390
Total Demension(mm) 760×615×1130
Weight(Kg) 97
Fuse -

1. Features unique to the DLSB chiller.

All parts that come in contact with liquid are made of stainless steel, which is resistant to corrosion, rust and cold.Magnetic stirring at the bottom can drive the magnetic stirring in the tank to make the temperature completely uniform, increase the distance between the stirring magnet and the stirring rod, and increase the stirring force.

2. I have a 20l rotary evaporator. How should I choose a low-temperature circulation pump?

20L rotary evaporator equipment, you can choose DLSB-20/30 or DLSB-20/40 coolant circulation pump. The capacity is 20L enough, and the temperature needs to be chosen according to your actual situation.

3. How will you delivery these goods?

It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
