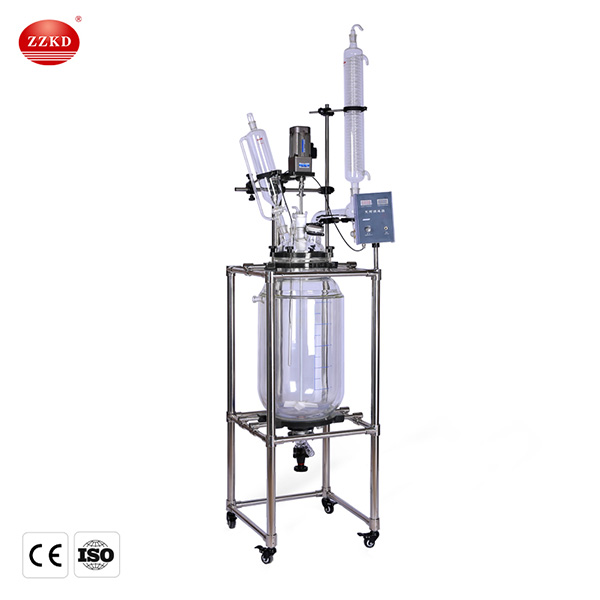

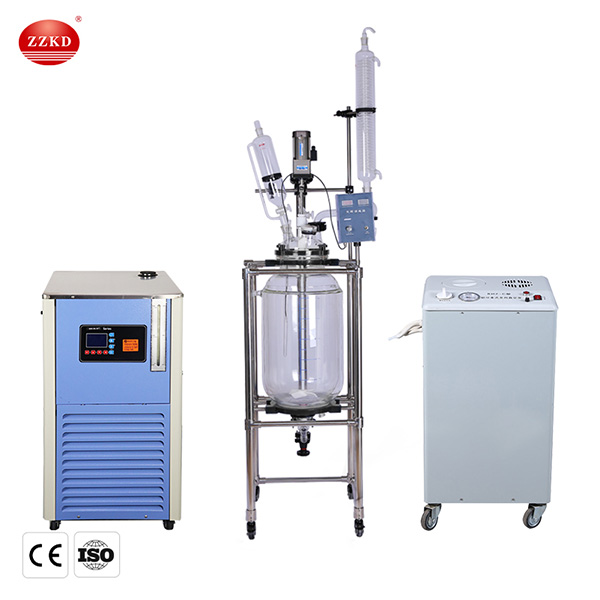

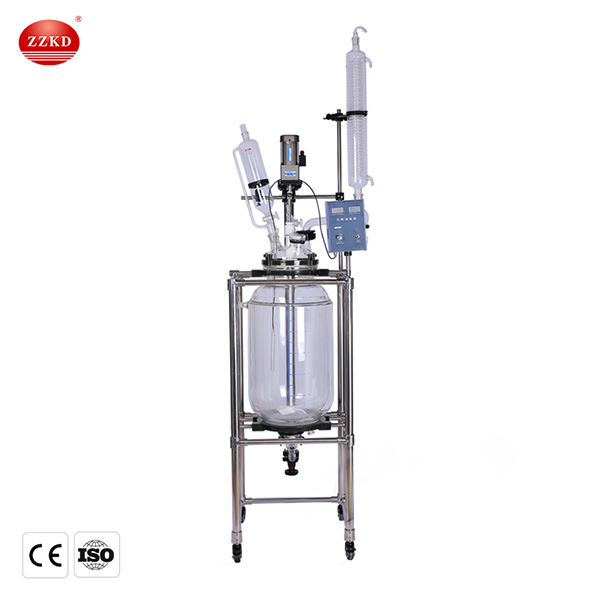

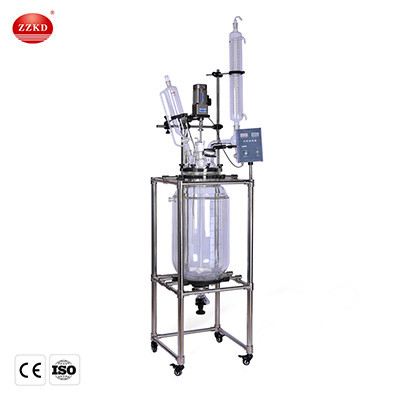

50L Jacketed Glass Reactor

50l Jacketed Glass Reactor Brief

The 50L Jacketed Glass Reactor is a laboratory apparatus designed for scientific applications such as chemistry, pharmaceuticals, and materials science. It has a large capacity of 50 liters, a jacketed design for precise temperature control, and high-quality borosilicate glass construction for chemical resistance and visibility.

Features of 50L Jacketed Gass Reactor

Large Capacity: The 50L reactor has a large capacity, making it suitable for handling large volumes of liquids and gases.

Jacketed Design: The jacketed design of the reactor provides precise temperature control, ensuring that reactions occur at the desired temperature and minimizing the risk of overheating or temperature fluctuations. The jacket also allows for efficient heating and cooling of the reactor, enabling users to perform experiments at different temperature ranges.
Borosilicate Glass Construction: The reactor body is made of high-quality borosilicate glass, which is highly resistant to chemical corrosion and can withstand extreme temperature changes. The glass material also provides excellent visibility, allowing users to monitor the reaction process in real-time.

Powerful Stirring System: The reactor is equipped with a powerful stirring system that ensures efficient mixing of reactants and enables users to achieve uniformity in their reactions. The stirring motor is highly durable and operates at a low noise level, making it ideal for use in a laboratory setting.
Safety Features: The reactor is equipped with a range of safety features to ensure that experiments are conducted safely and reliably. This includes a safety valve that protects against overpressure, preventing accidents and ensuring that the reactor operates within safe limits. The reactor also comes with a safety switch that automatically shuts off the stirring system if the glass vessel is removed, further reducing the risk of accidents.

Digital Temperature Control System: The reactor is equipped with a digital temperature control system that allows users to set and maintain the desired temperature with high precision. The temperature control system is also equipped with an automatic shut-off function, which turns off the heating system if the temperature exceeds a certain threshold, further enhancing safety.
Easy to Clean and Maintain: The reactor is easy to clean and maintain, with a simple and intuitive design that allows users to disassemble and reassemble the various components quickly and easily. The glass material is also highly resistant to corrosion and is easy to clean, making it ideal for use in laboratory settings where cleanliness and sterility are critical.

50L Jacketed Glass Reactor Working Principle

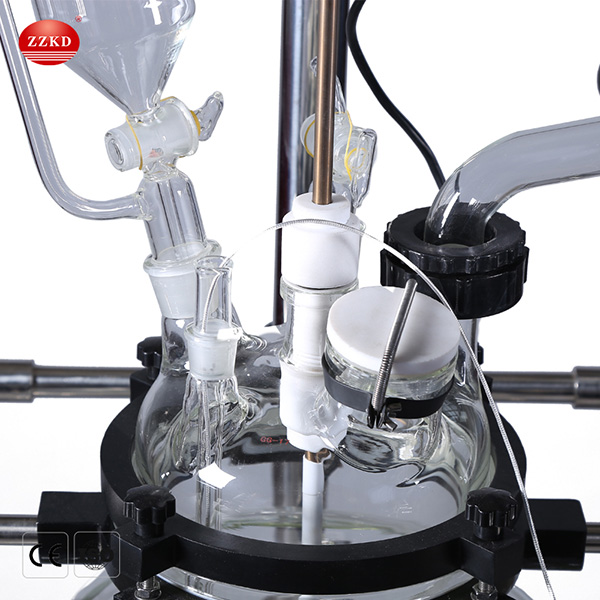

The 50L Jacketed Glass Reactor is consists of a glass vessel, made of borosilicate glass, and a jacket surrounding the vessel. The jacket allows for precise temperature control by circulating a heating or cooling fluid, such as water or oil, around the vessel.

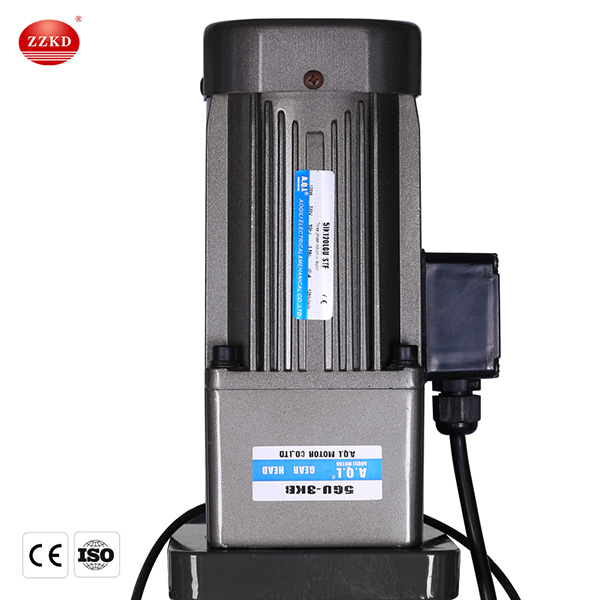

The reactor is equipped with a powerful stirring system, consisting of a motor, stirrer, and impeller, which provides efficient mixing of the reactants. The speed of the stirrer can be controlled using a variable speed control, allowing users to adjust the stirring speed according to the specific requirements of their experiments.
