Lab vacuum freeze dryer manufacturer produced KD-18N freeze dryer. It is refrigeration equipment that complies with GMP international standards and has CE and ISO certification.We have a strong R & D team and a comprehensive sales system to serve you.
Features
- Transparent Bell type drying room, secure and ocular
- Stainless steel sample holder, common sample plate spacing adjustable
- Small size and easy to operate
- Industrial embedded operating system, ARM9 core control circuit design, 32M memory 128M FLASH, fast operation response, the large amount of stored data.

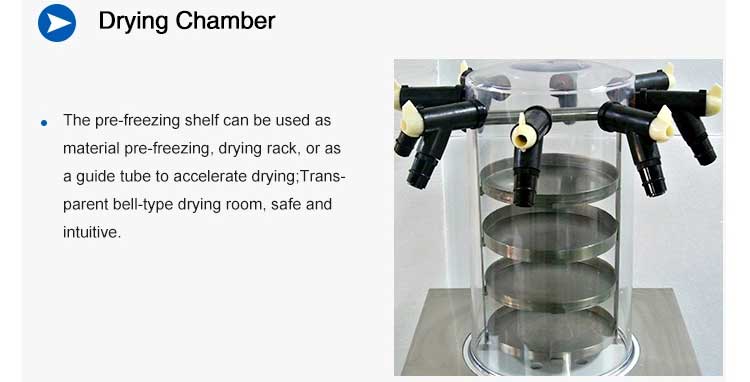

- The drying chamber adopts a colorless transparent one-time injection molding polycarbonate drying chamber, which is corrosion-resistant, non-fragile, non-cracking, transparent high, tightly sealed, and the sample is clear and intuitive, and the whole process of lyophilization can be observed.
Detail
In order to use the freeze dryer perfectly, you may need the following equipment and features
- Eutectic point test function to master the better sublimation temperature of materials.
- Vacuum control to maximize heat transfer.

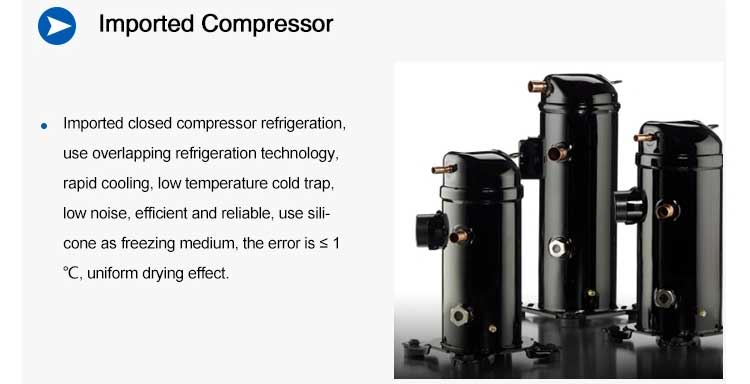

- Dual-machine cascade refrigeration system with proven technology and low temperature for -80 °C lyophilizer.
- Wide-mouth manifold freeze-dry bottle configuration, easy to pick up materials, can be connected with imported standard freeze-dried bottle valves. The standard configuration is 6 tubes.
- Optional power distribution defrosts function to accelerate defrost speed and shorten drying cycle.
- Circulating water type multi-function vacuum pump
- Diaphragm vacuum pump
18N bell-type freeze dryer standard configuration
- Ordinary type: main unit + drying room + Anti-return oil vacuum pump + 7 inch touch screen with USB + nitrogen inflation valve
- Gland type: main unit + drying room + Anti-return oil vacuum pump + 7 inch touch screen with USB + nitrogen inflation valve
- Ordinary multi-manifold: mainframe + multi-manifold drying room + anti-return oil vacuum pump +7 inch touch screen with USB + nitrogen inflation valve + 8 sets of freeze-dried eggplant type bottle
- Gland multi-manifold: main unit + multi-manifold drying room + anti-return oil vacuum pump +7 inch touch screen with USB + nitrogen gas filling valve + 8 sets of freeze-dried eggplant type bottle
- T-frame: mainframe + T-frame (multi-tube) + anti-return oil vacuum pump +7 inch touch screen with USB + nitrogen inflation valve + 24 ampoule T-frame
After sale
- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan
Package
Transport
| Model | KD-18N | |
| Specification | Ordinary multi-manifold | |
| Freeze-dried area(m2) | 0.18 | |
| Water catching capacity(kg/ time) | 6 | |
| Vial bottle bottling | Φ12mm | 1320 |
| Φ16mm | 698 | |
| Φ22mm | 360 | |
| Number of eggplant bottles | 8 | |
| Ampoule interface | / | |
| Disk loading solution(L) | 2 | |
| Material tray size(mm) | Φ240 | |
| Material spacing(mm) | 70 | |
| Material tray size( 个) | 4 | |
| Cold trap size(mm) | Φ300×405 | |
| Cold trap minimum temperature(°C) | ≤-56 ( No load) | |
| -80°C cold trap minimum temperature(°C) | ≤-80 ( No load) | |
| Ultimate vacuum(Pa) | ≤5 ( No load) | |
| PowerKw(220V50Hz) | 1.3 | |
| Ambient temperature(°C) | ≤25 | |
| Overall dimensions(mm) | 670*525*910+480 | |
| -80°C overall size(mm) | 780*525*910+480 | |
| Total Weight(kg) | 81 | |
| Special Note | The size and weight of the whole machine do not include the external vacuum pump. The height of the B/D lyophilizer does not include the manual gland handle (the height is about 70mm) | |
1.What is the lyophilization area of the laboratory freeze dryer?
The freeze-dry area of the conventional bell-type freeze dryer is 0.125 ㎡, and the freeze-dry area of the gland-type bell-type freeze dryer is 0.125 ㎡.2.How to choose a desktop freeze dryer and a vertical freeze dryer?
If you need lyophilized materials that require temperatures above -56 ° C and require less lyophilized material, you can choose a desktop freeze dryer to reduce costs.If you need a lot of lyophilized material and have higher requirements on the cooling temperature, you can choose the vertical freeze dryer, although the price will be more expensive, but definitely worth the money.
3.How about the freeze-drying efficiency of your freeze dryer?
Different types of freeze dryers have different working efficiency, and the specific working efficiency refers to the manual.If you want to speed up the work of the freeze dryer, you can choose: eutectic point test function, vacuum degree control function and optional power distribution defrosting function. To help you speed up the work of the freeze dryer.
