The small RE-5299 rotary evaporator has a rotating bottle capacity of 0.25 to 2 L and a temperature difference of ±1 °C.


  Features


- International advanced EL gas-tight system keeps high vacuum degree. Gas-liquid separator, no reflux.
- The rotating flask is easy to install and setup.
- Intelligent PID temp. Controller, it can be lifted up and down.
- Continuous feed are available.
- The glass part consists of corrosion-resistant, high-temperature resistant borosilicate glass.
- Mechanical parts are made of stainless steel and aluminum alloys.
- Explosion-proof system is optional.

  Detail


motor

digital control

spiral condenser

evaporating flask

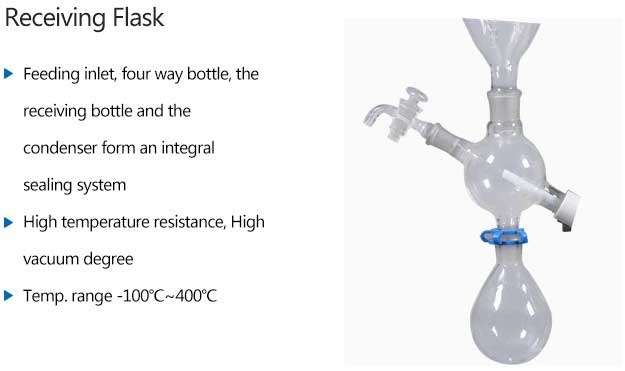

receiving flask

water/oil bath

  For the perfect use of the entire rotary evaporator system you may need the following equipment


- Low temperature constant temperature reaction bath
- Circulating cooler
- Constant temperature circulator

  After sale


- 1 year warranty service and all life maintenance.
- Technical Egineer are avalible for oversea trainning.
- Free change for some parts
- Remote control technical consult
- Free installation DVD
- Maintenance plan


  Package


package

  Transport


Delivery method

Model RE-5299
Evaporating Flask 0.25~2L
Receiving Flask 0.25~1L
Rotating Motor 40W
Rotating Speed 0~120R/MIN
Water(Oil) Bath Power 1500W
Temperature Control Range Intelligent digital control  RT~399℃
Temperature Fluctuation ±1℃
Evaporation Rate(H2O) >1L/h
Condenser Vertical  Condenser
Lifting Mode Electric Lifting
Lifing Height 0~120mm
Voltage 220V50HZ
Sealing Mode PTFE,Fluoro Rubber Sealing
Note Customized configuration is available

1. What is the maximum temperature?

Temperature range: RT - 180 ° C oil bath.
Temperature range: RT - 99 ° C water bath.


2. How big is your size?

We can provide you with 0.25L, 0.5L, 1L, 2L, 3L, 5L, 10L, 20L, 50L.


3. Which payment method do you accept?

Usually we accept TT, Paypal, Western Union, Alibaba Trust and Letter of Credit. The exact payment method and shipping method will be discussed during the transaction.


4. How to package glass equipment?

We package these glass equipment in a good non-fumigation standard plywood box, which can reduce the shock and better protect the glass part of the equipment.
